Android 12 双击power键启动相机源码解析
2022-09-06 / 龙之叶

最近项目中接触到需要修改手机按键的需求，整理一下分享给大家

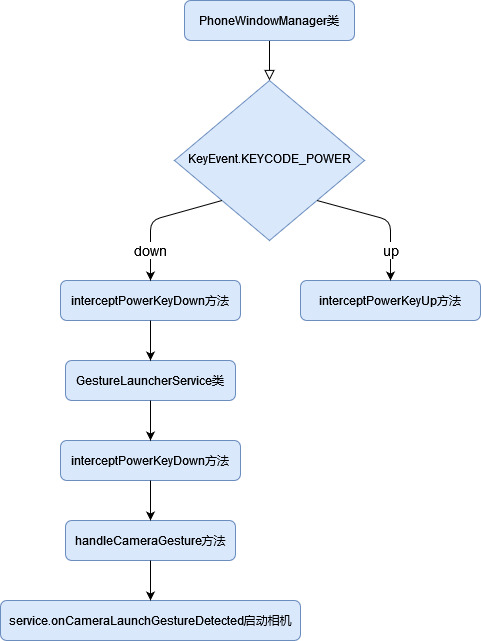

双击power键大概流程

PhoneWindowManager.java类是 处理各种 power 键流程的地方，路径如下:

1
\frameworks\base\services\core\java\com\android\server\policy\PhoneWindowManager.java

关键代码:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
case KeyEvent.KEYCODE_POWER: {
    EventLogTags.writeInterceptPower(
            KeyEvent.actionToString(event.getAction()),
            mPowerKeyHandled ? 1 : 0,
            mSingleKeyGestureDetector.getKeyPressCounter(KeyEvent.KEYCODE_POWER));
    // Any activity on the power button stops the accessibility shortcut
    result &= ~ACTION_PASS_TO_USER;
    isWakeKey = false; // wake-up will be handled separately
    if (down) {
        /*SPRD : add power debug log start*/
        Slog.d(TAG, "Receive Input KeyEvent of Powerkey down");
        /*SPRD : add power debug log end*/
        interceptPowerKeyDown(event, interactiveAndOn);
    } else {
        /*SPRD : add power debug log start*/
        Slog.d(TAG, "Receive Input KeyEvent of Powerkey up");
        /*SPRD : add power debug log end*/
        interceptPowerKeyUp(event, canceled);
    }
    break;
}

power键按下在interceptPowerKeyDown()执行，松开的操作在interceptPowerKeyUp()中执行interceptPowerKeyDown()方法中会调用GestureLauncherService.java的 interceptPowerKeyDown()方法
关键代码:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
// The camera gesture will be detected by GestureLauncherService.
private boolean handleCameraGesture(KeyEvent event, boolean interactive) {
    // camera gesture.
    if (mGestureLauncherService == null) {
        return false;
    }
    mCameraGestureTriggered = false;
    final MutableBoolean outLaunched = new MutableBoolean(false);
    final boolean intercept =
            mGestureLauncherService.interceptPowerKeyDown(event, interactive, outLaunched);
    if (!outLaunched.value) {
        // If GestureLauncherService intercepted the power key, but didn't launch camera app,
        // we should still return the intercept result. This prevents the single key gesture
        // detector from processing the power key later on.
        return intercept;
    }
    mCameraGestureTriggered = true;
    if (mRequestedOrSleepingDefaultDisplay) {
        mCameraGestureTriggeredDuringGoingToSleep = true;
    }
    return true;
}

跟踪看看GestureLauncherService.java 中 执行 **interceptPowerKeyDown()**方法如下
GestureLauncherService.java，路径如下：

1
/frameworks/base/services/core/java/com/android/server/GestureLauncherService.java

关键代码:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
public boolean interceptPowerKeyDown(KeyEvent event, boolean interactive,
            MutableBoolean outLaunched, boolean isScreenOn) {
        if (event.isLongPress()) {
            // Long presses are sent as a second key down. If the long press threshold is set lower
            // than the double tap of sequence interval thresholds, this could cause false double
            // taps or consecutive taps, so we want to ignore the long press event.
            return false;
        }
        boolean launchCamera = false;
        boolean launchEmergencyGesture = false;
        boolean intercept = false;
        long powerTapInterval;
        synchronized (this) {
            powerTapInterval = event.getEventTime() - mLastPowerDown;
            mLastPowerDown = event.getEventTime();
            if (powerTapInterval >= POWER_SHORT_TAP_SEQUENCE_MAX_INTERVAL_MS) {
                // Tap too slow, reset consecutive tap counts.
                mPowerButtonConsecutiveTaps = 1;
                mPowerButtonSlowConsecutiveTaps = 1;
            } else if (powerTapInterval >= CAMERA_POWER_DOUBLE_TAP_MAX_TIME_MS) {
                // Tap too slow for shortcuts
                mPowerButtonConsecutiveTaps = 1;
                mPowerButtonSlowConsecutiveTaps++;
            } else {
                // Fast consecutive tap
                mPowerButtonConsecutiveTaps++;
                mPowerButtonSlowConsecutiveTaps++;
            }
            // Check if we need to launch camera or emergency gesture flows
            if (mEmergencyGestureEnabled) {
                // Commit to intercepting the powerkey event after the second "quick" tap to avoid
                // lockscreen changes between launching camera and the emergency gesture flow.
                if (mPowerButtonConsecutiveTaps > 1) {
                    intercept = interactive;
                }
                if (mPowerButtonConsecutiveTaps == EMERGENCY_GESTURE_POWER_TAP_COUNT_THRESHOLD) {
                    launchEmergencyGesture = true;
                }
            }
            if (mCameraDoubleTapPowerEnabled
                    && powerTapInterval < CAMERA_POWER_DOUBLE_TAP_MAX_TIME_MS
                    && mPowerButtonConsecutiveTaps == CAMERA_POWER_TAP_COUNT_THRESHOLD) {
                launchCamera = true;
                intercept = interactive;
            }
        }
        if (mPowerButtonConsecutiveTaps > 1 || mPowerButtonSlowConsecutiveTaps > 1) {
            Slog.i(TAG, Long.valueOf(mPowerButtonConsecutiveTaps)
                    + " consecutive power button taps detected, "
                    + Long.valueOf(mPowerButtonSlowConsecutiveTaps)
                    + " consecutive slow power button taps detected");
        }
        if (launchCamera) {
            Slog.i(TAG, "Power button double tap gesture detected, launching camera. Interval="
                    + powerTapInterval + "ms");
                // 调用开启相机
                launchCamera = handleCameraGesture(false /* useWakelock */,
                        StatusBarManager.CAMERA_LAUNCH_SOURCE_POWER_DOUBLE_TAP);
            if (launchCamera) {
                mMetricsLogger.action(MetricsEvent.ACTION_DOUBLE_TAP_POWER_CAMERA_GESTURE,
                        (int) powerTapInterval);
                mUiEventLogger.log(GestureLauncherEvent.GESTURE_CAMERA_DOUBLE_TAP_POWER);
            }
        } else if (launchEmergencyGesture) {
            Slog.i(TAG, "Emergency gesture detected, launching.");
            launchEmergencyGesture = handleEmergencyGesture();
            mUiEventLogger.log(GestureLauncherEvent.GESTURE_EMERGENCY_TAP_POWER);
        }
        mMetricsLogger.histogram("power_consecutive_short_tap_count",
                mPowerButtonSlowConsecutiveTaps);
        mMetricsLogger.histogram("power_double_tap_interval", (int) powerTapInterval);

        outLaunched.value = launchCamera || launchEmergencyGesture;
        // Intercept power key event if the press is part of a gesture (camera, eGesture) and the
        // user has completed setup.
        return intercept && isUserSetupComplete();
    }

系统会对mCameraDoubleTapPowerEnabled 取值，核心是通过resources.getBoolean(com.android.internal.R.bool.config_cameraDoubleTapPowerGestureEnabled) 来取，
其实这个值是配置在/frameworks/base/core/res/res/values/config.xml中，这里是为true的

1
2
3
<!-- Allow the gesture to double tap the power button twice to start the camera while the device
         is non-interactive. -->
<bool name="config_cameraDoubleTapPowerGestureEnabled">true</bool>

接下来会分别对power连续按2或者1次进行判断，如果mCameraDoubleTapPowerEnabled = true 会通过比较按键的时间powerTapInterval小于系统默认时间(CAMERA_POWER_DOUBLE_TAP_MAX_TIME_MS=300毫秒),
mPowerButtonConsecutiveTaps计数加1，说明连续按power键，或者延迟最大500毫秒内连续按键，系统预计用户接下来可能会执行一些操作，计数也会加1

1
2
3
4
5
6
7
8
9
10
11
12
static final long POWER_SHORT_TAP_SEQUENCE_MAX_INTERVAL_MS = 500;

static final long CAMERA_POWER_DOUBLE_TAP_MAX_TIME_MS = 300;

powerTapInterval = event.getEventTime() - mLastPowerDown;
mLastPowerDown = event.getEventTime();

if (mCameraDoubleTapPowerEnabled
                    && powerTapInterval < CAMERA_POWER_DOUBLE_TAP_MAX_TIME_MS
                    && mPowerButtonConsecutiveTaps == CAMERA_POWER_TAP_COUNT_THRESHOLD)

if (powerTapInterval < POWER_SHORT_TAP_SEQUENCE_MAX_INTERVAL_MS)

执行完成之后会调用handleCameraGesture()方法调用开启摄像机。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
@VisibleForTesting
boolean handleCameraGesture(boolean useWakelock, int source) {
    Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "GestureLauncher:handleCameraGesture");
    try {
        boolean userSetupComplete = isUserSetupComplete();
        if (!userSetupComplete) {
            if (DBG) {
                Slog.d(TAG, String.format(
                        "userSetupComplete = %s, ignoring camera gesture.",
                        userSetupComplete));
            }
            return false;
        }
        if (DBG) {
            Slog.d(TAG, String.format(
                    "userSetupComplete = %s, performing camera gesture.",
                    userSetupComplete));
        }

        if (useWakelock) {
            // Make sure we don't sleep too early
            mWakeLock.acquire(500L);
        }
        StatusBarManagerInternal service = LocalServices.getService(
                StatusBarManagerInternal.class);
        // 启动相机
        service.onCameraLaunchGestureDetected(source);
        return true;
    } finally {
        Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
    }
}

原生双击启动相机流程差不多就是这样，有任何问题欢迎留言讨论
