Android13源码添加系统服务
2023-11-04 / 龙之叶

本文基于Android 13的framework层添加系统接口，为应用层提供读写函数、以及执行命令!

添加接口

frameworks/base/core/java/android/app/IDevices.aidl

1
2
3
4
5
6
7
8
9
10
package android.app;
interface IDevices
{
    //读取文件
    String readFile(String path);
    //写入文件
    void writeFile(String path,String data);
    //执行shell命令
    String shellExec(String cmd);
}

添加系统服务的Manager

frameworks/base/core/java/android/app/DevicesManager.java

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
package android.app;

import android.annotation.SystemService;
import android.content.Context;
import android.os.RemoteException;
import android.util.Slog;

@SystemService(Context.DEVICES_SERVICE)
public class DevicesManager {
    Context mContext;
    IDevices mService;

    public DevicesManager(Context context,IDevices service){
        if(service==null){
            Slog.e("DevicesManager","Construct service is null");
        }
        mContext = context;
        mService = service;
    }

    public String shellExec(String cmd){
        if(mService != null){
            try{
                Slog.e("DevicesManager","shellExec");
                return mService.shellExec(cmd);
            }catch(RemoteException e){
                Slog.e("DevicesManager","RemoteException "+e);
            }
        }else{
            Slog.e("DevicesManager","mService is null");
        }
        return "";
    }

    public String readFile(String path){
        if(mService != null){
            try{
                Slog.e("DevicesManager","readFile");
                return mService.readFile(path);
            }catch(RemoteException e){
                Slog.e("DevicesManager","RemoteException "+e);
            }
        }else{
            Slog.e("DevicesManager","mService is null");
        }
        return "";
    }

    public void writeFile(String path,String data){
        if(mService != null){
            try{
                Slog.e("DevicesManager","writeFile");
                mService.writeFile(path,data);
            }catch(RemoteException e){
                Slog.e("DevicesManager","RemoteException "+e);
            }
        }else{
            Slog.e("DevicesManager","mService is null");
        }
    }

}

添加系统服务，实现aidl文件的接口

frameworks/base/services/core/java/com/android/server/DevicesService.java

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
package com.android.server;

import android.app.IDevices;
import android.content.Context;
import android.os.Build;
import android.util.Log;
import android.util.Slog;

import java.io.File;
import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.io.IOException;

import libcore.io.IoUtils;

import java.io.BufferedReader;
import java.io.InputStream;
import java.io.InputStreamReader;
import java.io.OutputStream;
import java.io.RandomAccessFile;

import android.util.Base64;


public class DevicesService extends IDevices.Stub {
    private Context mContext;
    private String TAG="DevicesService";
    public DevicesService(Context context){
        super();
        mContext = context;
        Slog.d(TAG,"Construct");
    }

    @Override
    public String shellExec(String cmd){
        Runtime mRuntime = Runtime.getRuntime();
        try {
            //Process中封装了返回的结果和执行错误的结果
            Slog.d(TAG,"shellExec data:"+cmd);
            Process mProcess = mRuntime.exec(cmd);
            BufferedReader mReader = new BufferedReader(new InputStreamReader(mProcess.getInputStream()));
            StringBuffer mRespBuff = new StringBuffer();
            char[] buff = new char[1024];
            int ch = 0;
            while ((ch = mReader.read(buff)) != -1) {
                mRespBuff.append(buff, 0, ch);
            }
            mReader.close();
            return mRespBuff.toString();
        } catch (IOException e) {
            // TODO Auto-generated catch block
            e.printStackTrace();
            Slog.d(TAG,"shellExec err:"+e.getMessage());
        }
        return "";
    }


    public static void writeTxtToFile(String strcontent, String filePath) {
        String strFilePath = filePath;
        String strContent = strcontent + "\n";  // \r\n 结尾会变成 ^M
        try {
            File file = new File(strFilePath);
            makeFilePath(file.getParent(),file.getName());
            if (!file.exists()) {
                file.getParentFile().mkdirs();
                file.createNewFile();
            }
            RandomAccessFile raf = new RandomAccessFile(file, "rwd");
            raf.setLength(0);

            // 写文件的位置标记,从文件开头开始,后续读取文件内容从该标记开始
            long writePosition = raf.getFilePointer();
            raf.seek(writePosition);
            raf.write(strContent.getBytes());
            raf.close();
            //
        } catch (Exception e) {
            Log.d("DevicesService","Error on write File:" + e);
        }
    }

    // 生成文件
    public static File makeFilePath(String filePath, String fileName) {
        File file = null;
        makeRootDirectory(filePath);
        try {
            file = new File(filePath +"/"+ fileName);
            if (!file.exists()) {
                file.createNewFile();
            }
        } catch (Exception e) {
            e.printStackTrace();
        }
        return file;
    }

    // 生成文件夹
    public static void makeRootDirectory(String filePath) {
        File file = null;
        try {
            Log.d("FileHelper", "makeRootDirectory "+filePath);
            file = new File(filePath);
            if (!file.exists()) {
                boolean isok= file.mkdir();
                Log.d("FileHelper", "makeRootDirectory "+filePath+" "+isok);
            }
        } catch (Exception e) {
            Log.d("DevicesService", e+"");
        }
    }

    public static String readFileAll(String path) {
        File file = new File(path);
        StringBuilder sb=new StringBuilder();
        if (file != null && file.exists()) {
            InputStream inputStream = null;
            BufferedReader bufferedReader = null;
            try {
                inputStream = new FileInputStream(file);
                bufferedReader = new BufferedReader(new InputStreamReader(
                        inputStream));
                String outData;
                while((outData=bufferedReader.readLine())!=null){
                    sb.append(outData+"\n");
                }
            } catch (Throwable t) {
            } finally {
                try {
                    if (bufferedReader != null) {
                        bufferedReader.close();
                    }
                } catch (Exception e) {
                    e.printStackTrace();
                }
                try {
                    if (inputStream != null) {
                        inputStream.close();
                    }
                } catch (Exception e) {
                    e.printStackTrace();
                }
            }
        }
        return sb.toString();
    }


    @Override
    public String readFile(String path){
        return readFileAll(path);
    }
    @Override
    public void writeFile(String path,String data){
        writeTxtToFile(data,path);
    }

}

添加服务名称

frameworks/base/core/java/android/content/Context.java

1
2
3
4
5
6
7
8
9
10
11
12
13
14
        @StringDef(suffix = { "_SERVICE" }, value = {
                POWER_SERVICE,
/*add_longzhiye*/++    DEVICES_SERVICE,
                //@hide: POWER_STATS_SERVICE,
                WINDOW_SERVICE,
                LAYOUT_INFLATER_SERVICE,
                ACCOUNT_SERVICE,
                ACTIVITY_SERVICE,
                ALARM_SERVICE,



  public static final String POWER_SERVICE = "power";
++public static final String DEVICES_SERVICE = "devices";

将实现的服务注册到系统中去

frameworks/base/core/java/android/app/SystemServiceRegistry.java

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
registerService(Context.SEARCH_SERVICE, SearchManager.class,
        new CachedServiceFetcher<SearchManager>() {
    @Override
    public SearchManager createService(ContextImpl ctx) throws ServiceNotFoundException {
        return new SearchManager(ctx.getOuterContext(),
                ctx.mMainThread.getHandler());
    }});
//add longzhiye
registerService(Context.DEVICES_SERVICE,DevicesManager.class,
        new CachedServiceFetcher<DevicesManager>(){
    @Override
    public DevicesManager createService(ContextImpl ctx){
        IBinder b = ServiceManager.getService(Context.DEVICES_SERVICE);
        return new DevicesManager(ctx,IDevices.Stub.asInterface(b));
                } });
//add end
registerService(Context.SENSOR_SERVICE, SensorManager.class,
        new CachedServiceFetcher<SensorManager>() {
    @Override
    public SensorManager createService(ContextImpl ctx) {
        return new SystemSensorManager(ctx.getOuterContext(),
          ctx.mMainThread.getHandler().getLooper());
    }});

将注册的服务设置成开机启动服务

frameworks/base/services/java/com/android/server/SystemServer.java

1
2
3
4
5
6
7
8
9
10
11
12
13
14
t.traceBegin("StartTelephonyRegistry");
telephonyRegistry = new TelephonyRegistry(
        context, new TelephonyRegistry.ConfigurationProvider());
ServiceManager.addService("telephony.registry", telephonyRegistry);
t.traceEnd();
//add longzhiye
t.traceBegin("StartDevicesService");
try{
    ServiceManager.addService(Context.DEVICES_SERVICE,new DevicesService(context));
} catch(Throwable e){
    Slog.e("DevicesService","Failed to start DevicesService Service "+e);
}
t.traceEnd();
//add end

让lint检查忽略掉自己的模块

注(Android 11 以后谷歌强制开启lint检查，lint检查不过编译会报错)

frameworks/base/Android.bp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
// TODO(b/145644363): move this to under StubLibraries.bp or ApiDocs.bp
metalava_framework_docs_args = "" +
    "--api-lint-ignore-prefix android.app. " +     //add_longzhiye
    "--api-lint-ignore-prefix android.icu. " +
    "--api-lint-ignore-prefix java. " +
    "--api-lint-ignore-prefix junit. " +
    "--api-lint-ignore-prefix org. " +
    "--error NoSettingsProvider " +
    "--error UnhiddenSystemApi " +
    "--force-convert-to-warning-nullability-annotations +*:-android.*:+android.icu.*:-dalvik.* " +
    "--hide BroadcastBehavior " +
    "--hide CallbackInterface " +
    "--hide DeprecationMismatch " +
    "--hide HiddenSuperclass " +
    "--hide HiddenTypeParameter " +
    "--hide MissingPermission " +
    "--hide-package android.audio.policy.configuration.V7_0 " +
    "--hide-package com.android.server " +
    "--hide RequiresPermission " +
    "--hide SdkConstant " +
    "--hide Todo " +
    "--hide Typo " +
    "--hide UnavailableSymbol " +
    "--manifest $(location core/res/AndroidManifest.xml) "

编译源码 更新api接口

1
make update-api

检查服务是否开启

将编译好的rom 刷入手机,查看sevice list
这里可以看到我们的服务 已经启动了：
服务名称：79 devices: [android.app.IDevices]

1
2
3
4
5
6
7
8
9
10
longzhiye@longzhiye-laptop:~$ adb shell
coral:/ # service list |grep Device
60    companiondevice: [android.companion.ICompanionDeviceManager]
75    device_identifiers: [android.os.IDeviceIdentifiersPolicyService]
76    device_policy: [android.app.admin.IDevicePolicyManager]
77    device_state: [android.hardware.devicestate.IDeviceStateManager]
78    deviceidle: [android.os.IDeviceIdleController]
79    devices: [android.app.IDevices]
251    virtualdevice: [android.companion.virtual.IVirtualDeviceManager]
coral:/ #

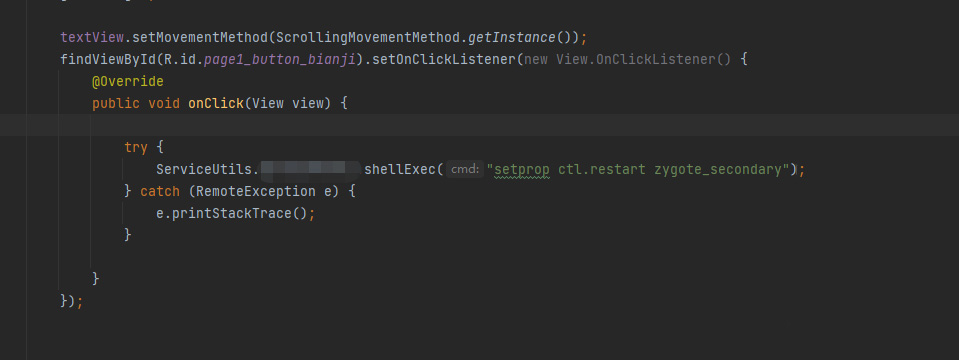

调用测试

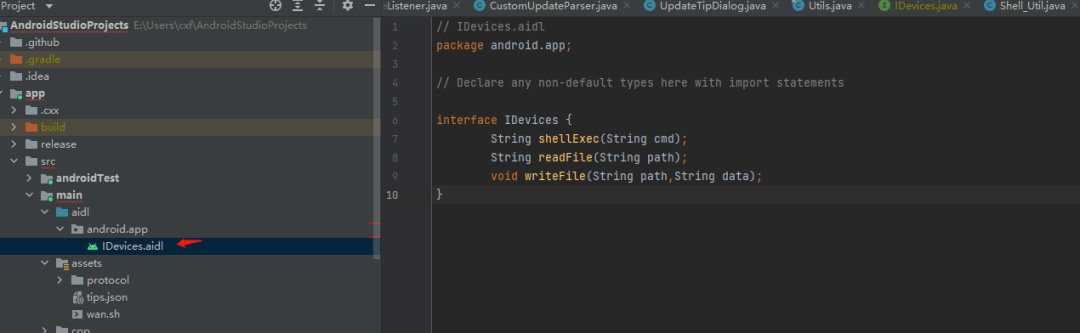

应用层项目中引入aidl

1
2
3
4
5
6
7
8
9
10
// IDevices.aidl
package android.app;

// Declare any non-default types here with import statements

interface IDevices {
        String shellExec(String cmd);
        String readFile(String path);
        void writeFile(String path,String data);
}


调用测试：

本文链接：
http://longzhiye.top/2023/11/04/2023-11-04/
