Android 10.0 Launcher 启动流程

在前面SystemUI启动流程中说到，在SystemServer中会去启动各种系统服务，这里的launcher也是启动的其中一个服务ActivityManagerService去启动的。在android10之前，系统四大组件的启动都是在ActivityManagerService中，在android10中，单独抽出了一个ActivityTaskManagerService，主要负责Activity的管理和调度。这里先来看下ActivityManagerService服务的启动：
frameworks/base/services/java/com/android/server/SystemServer.java

private void startBootstrapServices() {
    ... ...
    // Activity manager runs the show.
    traceBeginAndSlog("StartActivityManager");
    // TODO: Might need to move after migration to WM.
    ActivityTaskManagerService atm = mSystemServiceManager.startService(
            ActivityTaskManagerService.Lifecycle.class).getService();
    mActivityManagerService = ActivityManagerService.Lifecycle.startService(
            mSystemServiceManager, atm);
    mActivityManagerService.setSystemServiceManager(mSystemServiceManager);
    mActivityManagerService.setInstaller(installer);
    mWindowManagerGlobalLock = atm.getGlobalLock();
    traceEnd();
    ... ...
}

当SystemServiceManager调用 startService() 时，就会通过反射去创建传进去的class，然后在调用创建对象的 onStart() 方法，这里就是去初始化ActivityTaskManagerService和ActivityManagerService对象，并不会去启动launcher，而且系统服务启动分为三块：
frameworks/base/services/java/com/android/server/SystemServer.java

startBootstrapServices();   // 启动引导服务
startCoreServices();        // 启动核心服务
startOtherServices();       // 启动其他服务

在startOtherServices（）中可以看到：
frameworks/base/services/java/com/android/server/SystemServer.java

private void startOtherServices() {
    ... ...
    // We now tell the activity manager it is okay to run third party
    // code.  It will call back into us once it has gotten to the state
    // where third party code can really run (but before it has actually
    // started launching the initial applications), for us to complete our
    // initialization.
    mActivityManagerService.systemReady(() -> {
        ... ...
    });
}

这就说明在所有服务初始化完成后，在这里会通知ActivityManagerService的systemReady()启动 launcher 的进程。
下面一起来看 launcher 是如何被启动起来的：
frameworks/base/services/core/java/com/android/server/am/ActivityManagerService.java

public void systemReady(final Runnable goingCallback, TimingsTraceLog traceLog) {
    ... ...
    mAtmInternal.startHomeOnAllDisplays(currentUserId, "systemReady");
    ... ...
    mAtmInternal.resumeTopActivities(false /* scheduleIdle */);
    ... ...
}

mAtmInternal类型是ActivityTaskManagerInternal，这是一个抽象类，其实现是ActivityTaskManagerService的内部类LocalService：
frameworks/base/services/core/java/com/android/server/wm/ActivityTaskManagerService.java

final class LocalService extends ActivityTaskManagerInternal {
    ... ...
    @Override
    public boolean startHomeOnAllDisplays(int userId, String reason) {
        synchronized (mGlobalLock) {
            return mRootActivityContainer.startHomeOnAllDisplays(userId, reason);
        }
    }
    ... ...
        @Override
    public void resumeTopActivities(boolean scheduleIdle){
        synchronized (mGlobalLock){
            mRootActivityContainer.resumeFocusedStacksTopActivities();
            if(scheduleIdle){
                mStackSupervisor.scheduleIdleLocked();
            }
        }
    }
    ... ...
}

这里的mRootActivityContainer类型是RootActivityContainer，按照文档上的说明，这是一个临时类，主要是将ActivityStackSupervisor.java中的一部分逻辑分离出来，在android11中，这个类就已经找不到了。替换成了RootWindowContainer，这里我们跟进 mRootActivityContainer.startHomeOnAllDisplays() 方法看，最终会调用到：startHomeOnDisplay() :
frameworks/base/services/core/java/com/android/server/wm/RootActivityContainer.java

boolean startHomeOnDisplay(int userId,String reason,int displayId,boolean allowInstrumenting,boolean fromHomeKey){
    // Fallback to top focused display if the displayId is invalid.
    if(displayId==INVALID_DISPLAY){
        displayId=getTopDisplayFocusedStack().mDisplayId;
    }

    Intent homeIntent=null;
    ActivityInfo aInfo=null;
    if(displayId==DEFAULT_DISPLAY){
        //拿到需要启动launcher的intent，通过resolveHomeActivity解析出需要启动的Activity
        homeIntent=mService.getHomeIntent();
        aInfo=resolveHomeActivity(userId,homeIntent);
    }else if(shouldPlaceSecondaryHomeOnDisplay(displayId)){
        Pair<ActivityInfo, Intent> info=resolveSecondaryHomeActivity(userId,displayId);
        aInfo=info.first;
        homeIntent=info.second;
    }
    if(aInfo==null||homeIntent==null){
        return false;
    }

    if(!canStartHomeOnDisplay(aInfo,displayId,allowInstrumenting)){
        return false;
    }

    // Updates the home component of the intent.
    homeIntent.setComponent(new ComponentName(aInfo.applicationInfo.packageName,aInfo.name));
    homeIntent.setFlags(homeIntent.getFlags()|FLAG_ACTIVITY_NEW_TASK);
    // Updates the extra information of the intent.
    if(fromHomeKey){
        homeIntent.putExtra(WindowManagerPolicy.EXTRA_FROM_HOME_KEY,true);
    }
    // Update the reason for ANR debugging to verify if the user activity is the one that
    // actually launched.
    final String myReason=reason+":"+userId+":"+UserHandle.getUserId(
    aInfo.applicationInfo.uid)+":"+displayId;
    mService.getActivityStartController().startHomeActivity(homeIntent,aInfo,myReason,
    displayId);
    return true;
}

这里可以分为两步看：
  1、通过ActivityTaskManagerService的getHomeIntent（）获取到需要启动的intent，在通过resolveHomeActivity（）解析出需要启动Activity的信息，
  2、mService.getActivityStartController()获取到的是ActivityStartController，这个类的主要作用是用于控制委派启动的Activity。
先来看下ActivityTaskManagerService的getHomeIntent() :
frameworks/base/services/core/java/com/android/server/wm/ActivityTaskManagerService.java

Intent getHomeIntent() {
    Intent intent = new Intent(mTopAction, mTopData != null ? Uri.parse(mTopData) : null);
    intent.setComponent(mTopComponent);
    intent.addFlags(Intent.FLAG_DEBUG_TRIAGED_MISSING);
    if (mFactoryTest != FactoryTest.FACTORY_TEST_LOW_LEVEL) {
        intent.addCategory(Intent.CATEGORY_HOME);
    }
    return intent;
}

注意看 intent.addCategory(Intent.CATEGORY_HOME) ，这个代表的就是要启动Activity的意图，通常来说，整个系统的只会有一个应用会在清单文件中配置CATEGORY_HOME，如果配置了多个，系统在启动的时候就会要求用户手动去选择哪个作为启动应用，如果在系统设置应用中进行配置了，就会选择配置的那个应用启动。（这个 CATEGORY_HOME 配置，说白了就只有 launcher 程序才会有）。
回到主线，接着看mService.getActivityStartController().startHomeActivity() :
frameworks/base/services/core/java/com/android/server/wm/ActivityStartController.java

void startHomeActivity(Intent intent, ActivityInfo aInfo, String reason,
        TaskDisplayArea taskDisplayArea) {
    final ActivityOptions options = ActivityOptions.makeBasic();
    options.setLaunchWindowingMode(WINDOWING_MODE_FULLSCREEN);
    if (!ActivityRecord.isResolverActivity(aInfo.name)) {
        // The resolver activity shouldn't be put in home stack because when the foreground is
        // standard type activity, the resolver activity should be put on the top of current
        // foreground instead of bring home stack to front.
        options.setLaunchActivityType(ACTIVITY_TYPE_HOME);
    }
    final int displayId = taskDisplayArea.getDisplayId();
    options.setLaunchDisplayId(displayId);
    options.setLaunchTaskDisplayArea(taskDisplayArea.mRemoteToken
            .toWindowContainerToken());
    // The home activity will be started later, defer resuming to avoid unneccerary operations
    // (e.g. start home recursively) when creating home stack.
    mSupervisor.beginDeferResume();
    final ActivityStack homeStack;
    try {
        // Make sure home stack exists on display area.
        homeStack = taskDisplayArea.getOrCreateRootHomeTask(ON_TOP);
    } finally {
        mSupervisor.endDeferResume();
    }
    mLastHomeActivityStartResult = obtainStarter(intent, "startHomeActivity: " + reason)
            .setOutActivity(tmpOutRecord)
            .setCallingUid(0)
            .setActivityInfo(aInfo)
            .setActivityOptions(options.toBundle())
            .execute();
    mLastHomeActivityStartRecord = tmpOutRecord[0];
    if (homeStack.mInResumeTopActivity) {
        // If we are in resume section already, home activity will be initialized, but not
        // resumed (to avoid recursive resume) and will stay that way until something pokes it
        // again. We need to schedule another resume.
        mSupervisor.scheduleResumeTopActivities();
    }
}
/**
 * @return A starter to configure and execute starting an activity. It is valid until after
 *         {@link ActivityStarter#execute} is invoked. At that point, the starter should be
 *         considered invalid and no longer modified or used.
 */
ActivityStarter obtainStarter(Intent intent, String reason) {
    return mFactory.obtain().setIntent(intent).setReason(reason);
}

这里主要是先获取一个ActivityStarter（主要用于启动Activity），然后把需要的参数设置进去，最后再调用它的ActivityStarter.execute（）方法：
frameworks/base/services/core/java/com/android/server/wm/ActivityStarter.java

int execute() {
    try {
        ... ...
        final LaunchingState launchingState;
        synchronized (mService.mGlobalLock) {
            final ActivityRecord caller = ActivityRecord.forTokenLocked(mRequest.resultTo);
            // 通过ActivityMetricsLogger.notifyActivityLaunching创建LaunchingState并记录创建Activity开始的时间
            launchingState = mSupervisor.getActivityMetricsLogger().notifyActivityLaunching(
                    mRequest.intent, caller);
        }

        ... ...
        // 执行启动请求
        res = executeRequest(mRequest);
        ... ...

        // Notify ActivityMetricsLogger that the activity has launched.
        // ActivityMetricsLogger will then wait for the windows to be drawn and populate
        // WaitResult.
        // 通过ActivityMetricsLogger.notifyActivityLaunched记录Activity启动完成的时间
        mSupervisor.getActivityMetricsLogger().notifyActivityLaunched(launchingState, res,
                mLastStartActivityRecord);
        // 同时将Request.waitResult添加到ActivityStackSupervisor的mWaitingActivityLaunched中，等待窗口绘制完成
        return getExternalResult(mRequest.waitResult == null ? res
                : waitForResult(res, mLastStartActivityRecord));
        } finally {
            onExecutionComplete();
        }
    }

通过上面代码我们知道，启动是在 executeRequest() 方法里：
frameworks/base/services/core/java/com/android/server/wm/ActivityStarter.java

private int executeRequest(Request request) {
... ...
    //调用 startActivityUnchecked
    mLastStartActivityResult = startActivityUnchecked(r, sourceRecord, voiceSession,
            request.voiceInteractor, startFlags, true /* doResume */, checkedOptions, inTask,
            restrictedBgActivity, intentGrants);
    return mLastStartActivityResult;
}

ActivityStarter.startActivityUnchecked()
frameworks/base/services/core/java/com/android/server/wm/ActivityStarter.java

private int startActivityUnchecked(final ActivityRecord r, ActivityRecord sourceRecord,
            IVoiceInteractionSession voiceSession, IVoiceInteractor voiceInteractor,
            int startFlags, boolean doResume, ActivityOptions options, Task inTask,
            boolean restrictedBgActivity, NeededUriGrants intentGrants) {
    int result = START_CANCELED;
  ... ...
    try {
        //延时布局
        mService.deferWindowLayout();
        //执行startActivityInner
        result = startActivityInner(r, sourceRecord, voiceSession, voiceInteractor,
                startFlags, doResume, options, inTask, restrictedBgActivity, intentGrants);
    } finally {
        //恢复布局
        mService.continueWindowLayout();
    }
  ... ...
    return result;
}

ActivityStarter.startActivityInner()
frameworks/base/services/core/java/com/android/server/wm/ActivityStarter.java

int startActivityInner() {
    ... ...
       if (mDoResume) {
            //ActivityRecord 记录着 Activity 信息
            final ActivityRecord topTaskActivity =
                    mStartActivity.getTask().topRunningActivityLocked();
            if (!mTargetStack.isTopActivityFocusable()
                    || (topTaskActivity != null && topTaskActivity.isTaskOverlay()
                    && mStartActivity != topTaskActivity)) {
                mTargetStack.getDisplay().mDisplayContent.executeAppTransition();
            } else {
                //执行resumeFocusedStacksTopActivities
                mRootWindowContainer.resumeFocusedStacksTopActivities(
                        mTargetStack, mStartActivity, mOptions);
            }
        }
    ... ...
        return START_SUCCESS;
    }

RootWindowContainer.resumeFocusedStacksTopActivities()
frameworks/base/services/core/java/com/android/server/wm/RootWindowContainer.java

boolean resumeFocusedStacksTopActivities(
            ActivityStack targetStack, ActivityRecord target, ActivityOptions targetOptions) {
    ... ...
        //如果是栈顶Activity，启动resumeTopActivityUncheckedLocked
        if (targetStack != null && (targetStack.isTopStackInDisplayArea()
                || getTopDisplayFocusedStack() == targetStack)) {
            result = targetStack.resumeTopActivityUncheckedLocked(target, targetOptions);
        }
    ... ...
        if (!resumedOnDisplay) {
            //获取栈顶的 ActivityRecord
            final ActivityStack focusedStack = display.getFocusedStack();
            if (focusedStack != null) {
                //执行resumeTopActivityUncheckedLocked
                result |= focusedStack.resumeTopActivityUncheckedLocked(target, targetOptions);
            }else if (targetStack == null) {
                    result |= resumeHomeActivity(null /* prev */, "no-focusable-task",
                            display.getDefaultTaskDisplayArea());
            }
        }
      return result;
}

ActivityStack.resumeTopActivityUncheckedLocked()
frameworks/base/services/core/java/com/android/server/wm/ActivityStack.java

boolean resumeTopActivityUncheckedLocked(ActivityRecord prev, ActivityOptions options) {
    if (mInResumeTopActivity) {
        // Don't even start recursing.
        return false;
    }
    boolean result = false;
    try {
        mInResumeTopActivity = true;
        // 执行 resumeTopActivityInnerLocked,
        // 最终调用到 ActivityStackSupervisor.startSpecificActivity()
        result = resumeTopActivityInnerLocked(prev, options);
        final ActivityRecord next = topRunningActivity(true /* focusableOnly */);
        if (next == null || !next.canTurnScreenOn()) {
            checkReadyForSleep();
        }
    } finally {
        mInResumeTopActivity = false;
    }
    return result;
}

ActivityStackSupervisor.startSpecificActivity()
frameworks/base/services/core/java/com/android/server/wm/ActivityStackSupervisor.java

void startSpecificActivity(ActivityRecord r, boolean andResume, boolean checkConfig) {
    // Is this activity's application already running?
    final WindowProcessController wpc =
            mService.getProcessController(r.processName, r.info.applicationInfo.uid);

    boolean knownToBeDead = false;
    //进程存在
    if (wpc != null && wpc.hasThread()) {
        try {
            //真正启动Activity方法
            realStartActivityLocked(r, wpc, andResume, checkConfig);
            return;
        } catch (RemoteException e) {
            Slog.w(TAG, "Exception when starting activity "
                    + r.intent.getComponent().flattenToShortString(), e);
        }
        // If a dead object exception was thrown -- fall through to
        // restart the application.
        knownToBeDead = true;
    }

    r.notifyUnknownVisibilityLaunchedForKeyguardTransition();

    final boolean isTop = andResume && r.isTopRunningActivity();
    //进程不存在 mService =ATMS
    mService.startProcessAsync(r, knownToBeDead, isTop, isTop ? "top-activity" : "activity");
}

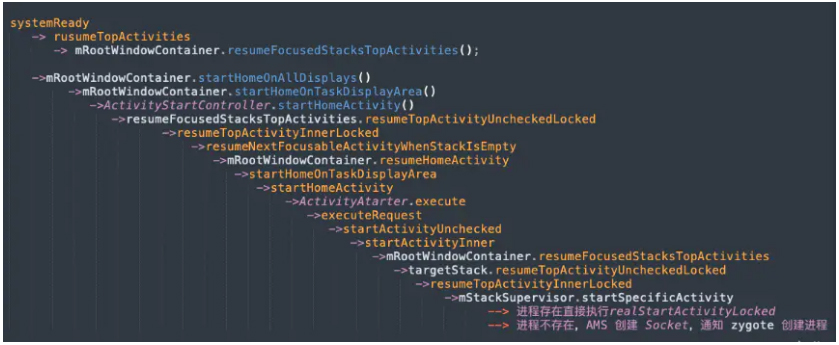

startSpecificActivity() 这个方法是关键方法，如果进程已经存在直接执行 realStartActivityLocked 去启动 Activity，进程不存在则通过AMS去创建 Socket，然后通知 Zygote 去 fork 进程。由于这里第一次创建，所以会走到 startProcessAsync() 。
Launcher启动流程调用栈：

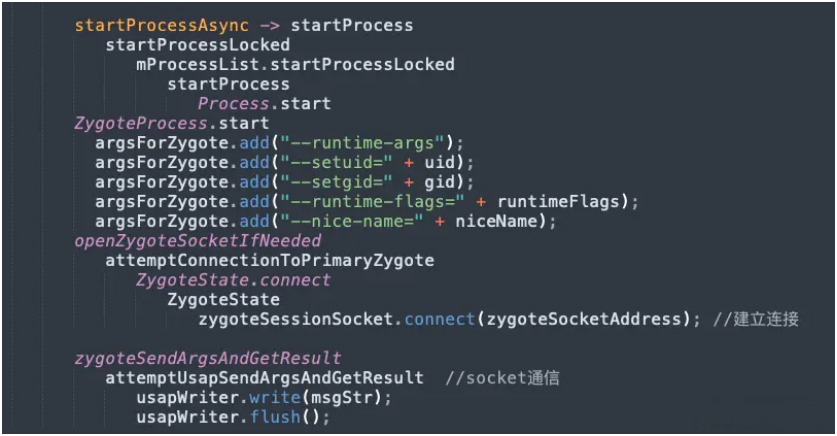

创建Socket建立连接
ActivityTaskManagerService.startProcessAsync()
frameworks/base/services/core/java/com/android/server/wm/ActivityTaskManagerService.java

void startProcessAsync(ActivityRecord activity, boolean knownToBeDead, boolean isTop,
        String hostingType) {
    try {
        if (Trace.isTagEnabled(TRACE_TAG_WINDOW_MANAGER)) {
            Trace.traceBegin(TRACE_TAG_WINDOW_MANAGER, "dispatchingStartProcess:"
                    + activity.processName);
        }
        // Post message to start process to avoid possible deadlock of calling into AMS with the
        // ATMS lock held.
        final Message m = PooledLambda.obtainMessage(ActivityManagerInternal::startProcess,
                mAmInternal, activity.processName, activity.info.applicationInfo, knownToBeDead,
                isTop, hostingType, activity.intent.getComponent());
        mH.sendMessage(m);
    } finally {
        Trace.traceEnd(TRACE_TAG_WINDOW_MANAGER);
    }
}

通过handler发消息执行ActivityManagerInternal.startProcess() ，内部又转调用ActivityManagerService.startProcessLocked() :
frameworks/base/services/core/java/com/android/server/am/ActivityManagerService.java

@GuardedBy("this")
final ProcessRecord startProcessLocked(String processName,
        ApplicationInfo info, boolean knownToBeDead, int intentFlags,
        HostingRecord hostingRecord, int zygotePolicyFlags, boolean allowWhileBooting,
        boolean isolated, boolean keepIfLarge) {
    return mProcessList.startProcessLocked(processName, info, knownToBeDead, intentFlags,
            hostingRecord, zygotePolicyFlags, allowWhileBooting, isolated, 0 /* isolatedUid */,
            keepIfLarge, null /* ABI override */, null /* entryPoint */,
            null /* entryPointArgs */, null /* crashHandler */);
}

mProcessList类型是ProcessList，这是一个进程管理类，描述了进程的adj值，当系统资源吃紧时，就会根据这里描述的adj去判断杀死哪个应用来释放资源，可以通过adb shell dumpsys meminfo来查看当前所有进程的分类情况，接着来看下ProcessList.startProcessLocked():
frameworks/base/services/core/java/com/android/server/am/ProcessList.java

final ProcessRecord startProcessLocked(String processName, ApplicationInfo info,
        boolean knownToBeDead, int intentFlags, HostingRecord hostingRecord,
        boolean allowWhileBooting, boolean isolated, int isolatedUid, boolean keepIfLarge,
        String abiOverride, String entryPoint, String[] entryPointArgs, Runnable crashHandler) {

    ProcessRecord app;
    ... ...
    checkSlow(startTime, "startProcess: stepping in to startProcess");
    final boolean success = startProcessLocked(app, hostingRecord, abiOverride);
    checkSlow(startTime, "startProcess: done starting proc!");
    return success ? app : null;
}

boolean startProcessLocked(ProcessRecord app, HostingRecord hostingRecord,
        boolean disableHiddenApiChecks, boolean mountExtStorageFull,
        String abiOverride) {
        ... ...
    try {
        ... ...
        // Start the process.  It will either succeed and return a result containing
        // the PID of the new process, or else throw a RuntimeException.
        final String entryPoint = "android.app.ActivityThread";

        return startProcessLocked(hostingRecord, entryPoint, app, uid, gids,
                runtimeFlags, mountExternal, seInfo, requiredAbi, instructionSet, invokeWith,
                startTime);
    } catch (RuntimeException e) {
        Slog.e(ActivityManagerService.TAG, "Failure starting process " + app.processName, e);

        // Something went very wrong while trying to start this process; one
        // common case is when the package is frozen due to an active
        // upgrade. To recover, clean up any active bookkeeping related to
        // starting this process. (We already invoked this method once when
        // the package was initially frozen through KILL_APPLICATION_MSG, so
        // it doesn't hurt to use it again.)
        mService.forceStopPackageLocked(app.info.packageName, UserHandle.getAppId(app.uid),
                false, false, true, false, false, app.userId, "start failure");
        return false;
    }
}

boolean startProcessLocked(HostingRecord hostingRecord,String entryPoint,
        ProcessRecord app, int uid, int[] gids, int runtimeFlags, int mountExternal,
        String seInfo, String requiredAbi, String instructionSet, String invokeWith,long startTime) {
        ... ...
        final Process.ProcessStartResult startResult = startProcess(app.hostingRecord,entryPoint, app, app.startUid, gids, runtimeFlags, mountExternal,app.seInfo, requiredAbi, instructionSet, invokeWith, app.startTime);
        ... ...
}

private Process.ProcessStartResult startProcess(HostingRecord hostingRecord, String entryPoint,
        ProcessRecord app, int uid, int[] gids, int runtimeFlags, int mountExternal,
        String seInfo, String requiredAbi, String instructionSet, String invokeWith,
        long startTime) {
    try {
        Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "Start proc: " +
                app.processName);
        checkSlow(startTime, "startProcess: asking zygote to start proc");
        final Process.ProcessStartResult startResult;
        if (hostingRecord.usesWebviewZygote()) {
            ... ...
        } else if (hostingRecord.usesAppZygote()) {
            final AppZygote appZygote = createAppZygoteForProcessIfNeeded(app);

            startResult = appZygote.getProcess().start(entryPoint,
                    app.processName, uid, uid, gids, runtimeFlags, mountExternal,
                    app.info.targetSdkVersion, seInfo, requiredAbi, instructionSet,
                    app.info.dataDir, null, app.info.packageName,
                    /*useUsapPool=*/ false,
                    new String[] {PROC_START_SEQ_IDENT + app.startSeq});
        } else {
            ... ...
        }
        checkSlow(startTime, "startProcess: returned from zygote!");
        return startResult;
    } finally {
        Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
    }
}

这里有几个我们需要关注的点，一个是第二个方法定义的entryPoint=”android.app.ActivityThread”，这个就是后面创建进程时会通过反射调用到的类，再来看最后一个方法，这里会执行else if语句，也就是执行ZygoteProcess的start（）方法。最终到 ZygoteProcess 的attemptUsapSendArgsAndGetResult 通过 Socket 通信，fork 一个新的 Launcher 进程，调用过程如图：

ZygoteProcess.attemptZygoteSendArgsAndGetResult()
frameworks/base/core/java/android/os/ZygoteProcess.java

private Process.ProcessStartResult attemptZygoteSendArgsAndGetResult(
        ZygoteState zygoteState, String msgStr) throws ZygoteStartFailedEx {
    try {
        final BufferedWriter zygoteWriter = zygoteState.mZygoteOutputWriter;
        final DataInputStream zygoteInputStream = zygoteState.mZygoteInputStream;

        zygoteWriter.write(msgStr);把应用进程的一些参数写给前面连接的zygote进程
        zygoteWriter.flush();//进入Zygote进程，处于阻塞状态
        //从socket中得到zygote创建的应用pid，赋值给 ProcessStartResult的对象
        Process.ProcessStartResult result = new Process.ProcessStartResult();
        result.pid = zygoteInputStream.readInt();
        result.usingWrapper = zygoteInputStream.readBoolean();
        return result;
    } catch (IOException ex) {
        zygoteState.close();
    }
}

Zygote进程处理
ZygoteInit.main
frameworks/base/core/java/com/android/internal/os/ZygoteInit.java

public static void main(String argv[]) {
    Runnable caller;
    if (startSystemServer) {
        //Zygote Fork出的第一个进程 SystmeServer
        Runnable r = forkSystemServer(abiList, zygoteSocketName, zygoteServer);

        if (r != null) {
            r.run();
            return;
        }
    }
    //循环等待fork出其他的应用进程，比如Launcher
    caller = zygoteServer.runSelectLoop(abiList);
    ...
    if (caller != null) {
        caller.run(); //执行runSelectLoop返回的Runnable对象，进入子进程
    }
}

ZygoteServer.runSelectLoop
frameworks/base/core/java/com/android/internal/os/ZygoteServer.java

Runnable runSelectLoop(String abiList) {
    while (true) {
        int pollReturnValue;
            try {
                //epoll机制 循环
                pollReturnValue = Os.poll(pollFDs, pollTimeoutMs);
            } catch (ErrnoException ex) {
                throw new RuntimeException("poll failed", ex);
            }
            ...
            //来了消息后，调用processOneCommand()来进行进程的处理
            final Runnable command =  connection.processOneCommand(this);
    }
}

ZygoteConnection.processOneCommand
frameworks/base/core/java/com/android/internal/os/ZygoteConnection.java

Runnable processOneCommand(ZygoteServer zygoteServer) {
            //fork进程，得到新进程pid
            //pid=0 表示Zygote  fork子进程成功
            //pid > 0 表示子进程 的真正的PID
            pid = Zygote.forkAndSpecialize(parsedArgs.mUid, parsedArgs.mGid, parsedArgs.mGids,
                parsedArgs.mRuntimeFlags, rlimits, parsedArgs.mMountExternal, parsedArgs.mSeInfo,
                parsedArgs.mNiceName, fdsToClose, fdsToIgnore, parsedArgs.mStartChildZygote,
                parsedArgs.mInstructionSet, parsedArgs.mAppDataDir, parsedArgs.mIsTopApp,
                parsedArgs.mPkgDataInfoList, parsedArgs.mWhitelistedDataInfoList,
                parsedArgs.mBindMountAppDataDirs, parsedArgs.mBindMountAppStorageDirs);
        try {
            //fork成功，第一次返回的pid = 0
            if (pid == 0) {
                return handleChildProc(parsedArgs, childPipeFd, parsedArgs.mStartChildZygote);
            } else {
                handleParentProc(pid, serverPipeFd);
                return null;
            }
}

ZygoteConnection.handleChildProc
这里主要执行到 ZygoteInit.zygoteInit，zygoteInit 进行一些环境的初始化、启动Binder进程等操作，最终反射执行 ActivityThread.main
frameworks/base/core/java/com/android/internal/os/ZygoteConnection.java

private Runnable handleChildProc(ZygoteArguments parsedArgs,
        FileDescriptor pipeFd, boolean isZygote) {
    closeSocket();
    Zygote.setAppProcessName(parsedArgs, TAG);
        if (!isZygote) {
            //App进程将会调用到这里，最终反射执行ActivityThread.main
            return ZygoteInit.zygoteInit(parsedArgs.mTargetSdkVersion,
                    parsedArgs.mDisabledCompatChanges,
                    parsedArgs.mRemainingArgs, null /* classLoader */);
        } else {
            return ZygoteInit.childZygoteInit(parsedArgs.mTargetSdkVersion,
                    parsedArgs.mRemainingArgs, null /* classLoader */);
        }

}

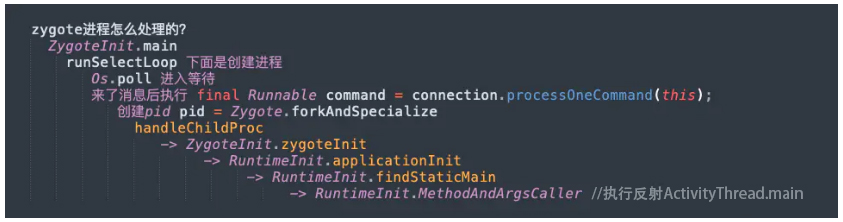

Zygote进程调用栈:

ActivityThread中处理
Zygote fork出了 Launcher 的进程，并把接下来的 Launcher 启动任务交给了 ActivityThread 来进行，接下来我们就从 ActivityThread.main方法来分析 Launcher 的创建过程。
frameworks/base/core/java/android/app/ActivityThread.java

public static void main(String[] args) {
    Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "ActivityThreadMain");
    ... ...
    //创建主线程Looper
    Looper.prepareMainLooper();
    ... ...
    ActivityThread thread = new ActivityThread();
    //执行attach
    ... ...
    thread.attach(false, startSeq);
    //开启循环
    ... ...
    Looper.loop();
    throw new RuntimeException("Main thread loop unexpectedly exited");
}

这里就是android层面划分为一个应用进程的开始，初始化一个looper，也就是android中说的主线程，并开始looper循环，这里调用到了ActivitThread.attach() :
frameworks/base/core/java/android/app/ActivityThread.java

private void attach(boolean system, long startSeq) {
    sCurrentActivityThread = this;
    mSystemThread = system;
    if (!system) {
        ... ...
        // 这里会拿到ActivityManagerService的代理
        final IActivityManager mgr = ActivityManager.getService();
        try {
           //应用的句柄发给AMS，从而使AMS可以管理新进程
            mgr.attachApplication(mAppThread, startSeq);
        } catch (RemoteException ex) {
            throw ex.rethrowFromSystemServer();
        }
         ... ...
    } else {
        // 在前面讲Zygote进程的时候，里面创建ActivityThread就会执行到这里
    }

    //当系统配置发生变更时会执行这个回调
    ViewRootImpl.ConfigChangedCallback configChangedCallback
            = (Configuration globalConfig) -> {
        ... ...
    };
    ViewRootImpl.addConfigCallback(configChangedCallback);
}

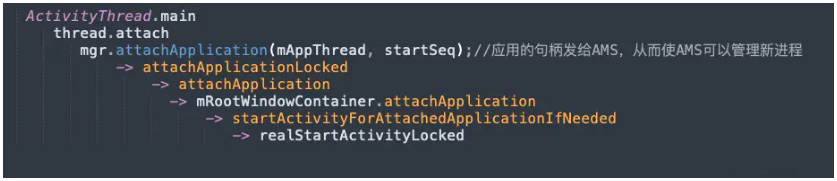

这里会执行if语句里面的内容，mAppThread的类型是ApplicationThread，这个类的主要作用是在ActivityManagerService中回调回ActivityThread中来，mgr是ActivityManagerService的代理，在执行它的ActivityManagerService.attachApplication() 方法：
frameworks/base/services/core/java/com/android/server/am/ActivityManagerService.java

public final void attachApplication(IApplicationThread thread, long startSeq) {
    synchronized (this) {
        int callingPid = Binder.getCallingPid();
        final int callingUid = Binder.getCallingUid();
        final long origId = Binder.clearCallingIdentity();
        attachApplicationLocked(thread, callingPid, callingUid, startSeq);
        Binder.restoreCallingIdentity(origId);
    }
}

ActivityManagerService.attachApplicationLocked()
调用AMS的 attachApplication()，最终层层调用到 ActivityStackSupervisor 的 realStartActivityLocked，真正准备去启动Activity。
frameworks/base/services/core/java/com/android/server/am/ActivityManagerService.java

private final boolean attachApplicationLocked(IApplicationThread thread,int pid, int callingUid, long startSeq) {
    ... ...
    //这里会去调用ActivityThrea的bindApplication(),也就是会去创建Application
    thread.bindApplication(... ...)
    ... ...
    //如果当前的Application记录仍然依附到之前的进程中，则清理掉
    if (app.thread != null) {
        handleAppDiedLocked(app, true, true);
    }
    ... ...
    // See if the top visible activity is waiting to run in this process...
    if (normalMode) {
        try {
            //调用ActivityTaskManagerService的attachApplication()，最终层层调用到ActivityStackSupervisor.java的 realStartActivityLocked()
            didSomething = mAtmInternal.attachApplication(app.getWindowProcessController());
        } catch (Exception e) {
            Slog.wtf(TAG, "Exception thrown launching activities in " + app, e);
            badApp = true;
        }
    }
    ... ...
}

这里通过AMS最终会调用到ActivityStackSupervisor.realStartActivityLocked()：
frameworks/base/services/core/java/com/android/server/wm/ActivityStackSupervisor.java

boolean realStartActivityLocked(ActivityRecord r, WindowProcessController proc,
        boolean andResume, boolean checkConfig) throws RemoteException {
    //确保所有的Activity执行了onPause才会往下继续执行
    if (!mRootActivityContainer.allPausedActivitiesComplete()) {
        // While there are activities pausing we skipping starting any new activities until
        // pauses are complete. NOTE: that we also do this for activities that are starting in
        // the paused state because they will first be resumed then paused on the client side.
        if (DEBUG_SWITCH || DEBUG_PAUSE || DEBUG_STATES) Slog.v(TAG_PAUSE,
                "realStartActivityLocked: Skipping start of r=" + r
                + " some activities pausing...");
        return false;
    }
    ... ...

    try {
        ... ...
        try{
            ... ...
            // Create activity launch transaction.
            final ClientTransaction clientTransaction = ClientTransaction.obtain(
                    proc.getThread(), r.appToken);

            final DisplayContent dc = r.getDisplay().mDisplayContent;
            //在回调序列的末尾添加一条消息
            clientTransaction.addCallback(LaunchActivityItem.obtain(... ...));

            // Set desired final state.
            final ActivityLifecycleItem lifecycleItem;
            if (andResume) {
                lifecycleItem = ResumeActivityItem.obtain(dc.isNextTransitionForward());
            } else {
                lifecycleItem = PauseActivityItem.obtain();
            }
            //添加最后执行的生命周期状态
            clientTransaction.setLifecycleStateRequest(lifecycleItem);

            // 这里其实就是执行ClientTransaction的schedule()方法
            mService.getLifecycleManager().scheduleTransaction(clientTransaction);
            ... ...
        } catch (RemoteException e) {
            if (r.launchFailed) {
                // 第二次启动失败，finish activity并放弃启动
                Slog.e(TAG, "Second failure launching "
                        + r.intent.getComponent().flattenToShortString() + ", giving up", e);
                proc.appDied();
                stack.requestFinishActivityLocked(r.appToken, Activity.RESULT_CANCELED, null,
                        "2nd-crash", false);
                return false;
            }

            //第一次启动失败，尝试重启进程
            r.launchFailed = true;
            proc.removeActivity(r);
            throw e;
        }
    } finally {
        endDeferResume();
    }
    ... ...

    return true;
}

ActivityThread调用栈:

小结

至此已经走到 realStartActivityLocked，接下来就是 Activity 的启动流程，Activity 启动下篇文章会单独分析。总结一下 Launcher 启动流程，Launcher的启动经过了三个阶段：
  1、SystemServer 创建AMS和ATMS，通过 SystemReady 进入 LauncherActivity 的调用
  2、Zygote 进程 fork 出 Launcher 进程，通过 Socket 进行通信
  3、进入 ActivityThread 的处理，完成 Launcher 的 Acitivty 启动

本文链接：
http://longzhiye.top/2023/11/25/2023-11-25/
