高通 Android 12 framework添加自定义按键上报应用层

 2025-08-24 /  龙之叶

Android下添加新的自定义键值和按键处理流程

首先分析下Android下怎么添加新的自定义键值。在Android的原生系统中键值默认情况下是92个，从0-91；一般情况下，这些键值是够用的，但是如果想扩充的话，还是需要添加新的键值的，那么如何将一个新的键值从驱动的设置映射到上层，使应用可以对我们自定义的键值进行相应的处理呢？

在介绍Android怎么添加新的键值以前先介绍下Android下INPUT子系统FLOW的流程，下面就是精简的流程图示意图：

1.添加按键及其映射

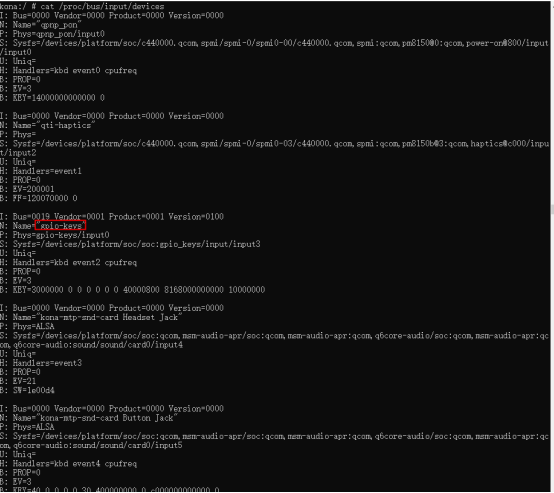

1 如果系统有新的按键需要添加，是怎么添加并上报到系统上层去的呢(这里的上层主要指的是Android应用层)，首先要确定的是我们的遥控设备是通过/dev/input目录下那个event调用那个kl文件，这里可以通过如下命令查看 cat /proc/bus/input/devices ,下面是在Window终端下的打印信息

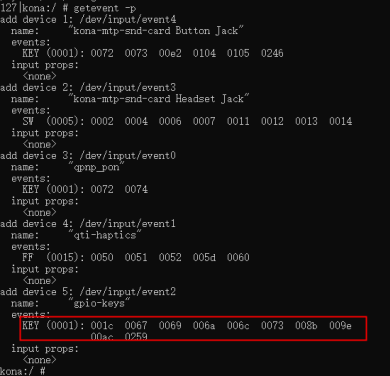

2 getevent -p得到以下数据信息

3 命令查看如下通过getevent查看驱动调节的按键值是否上传ok。 adb shell getevent 驱动上报O按键键值如下图所示 0259是16进制数对应10进制601 1，0: 是指按下和弹起的动作。

Kernel修改

2 在qssi11/LINUX/android/vendor/qcom/proprietary/devicetree-4.19/qcom/kona-pinctrl.dtsi 中增加相关内容[key]: 添加方向键（上、下、左、右）、X/O 键、确认键、主页键、菜单键

diff --git a/LINUX/android/vendor/qcom/proprietary/devicetree-4.19/qcom/kona-pinctrl.dtsi b/LINUX/android/vendor/qcom/proprietary/devicetree-4.19/qcom/kona-pinctrl.dtsi
index a6398b6..9de20ea 100755
--- a/LINUX/android/vendor/qcom/proprietary/devicetree-4.19/qcom/kona-pinctrl.dtsi
+++ b/LINUX/android/vendor/qcom/proprietary/devicetree-4.19/qcom/kona-pinctrl.dtsi
@@ -148,6 +148,31 @@
                        };
                };
 */
+               tlmm_gpio_key {
+                       gpio_key_em_active: gpio_key_em_active {
+                    mux {
+                            pins = "gpio160", "gpio161", "gpio164", "gpio165", "gpio166", "gpio167", "gpio168", "gpio169";
+                            function = "gpio";
+                    };
+                    config {
+                            pins = "gpio160", "gpio161", "gpio164", "gpio165", "gpio166", "gpio167", "gpio168", "gpio169";
+                            drive-strength = <4>;
+                            bias-pull-up;
+                    };
+            };
+            gpio_key_em_suspend: gpio_key_em_suspend {
+                    mux {
+                            pins = "gpio160", "gpio161", "gpio164", "gpio165", "gpio166", "gpio167", "gpio168", "gpio169";
+                            function = "gpio";
+                    };
+                    config {
+                            pins = "gpio160", "gpio161", "gpio164", "gpio165", "gpio166", "gpio167", "gpio168", "gpio169";
+                            drive-strength = <2>;
+                            bias-pull-up;
+                    };
+            };
+               };
+
                trigout_a: trigout_a {
                        mux {
:

framework修改

注意：需要注意 gpio 在其他地方的引用，这个会引起冲突。

3 QSSI12/device/qcom/qssi/gpio-keys.kl中增加键盘扫描码对应的键盘码key值X/O,600/601

key 114     VOLUME_DOWN
key 115     VOLUME_UP
key 116     POWER           WAKE
key 212     CAMERA          WAKE
key 0x210   FOCUS           WAKE
key 59   F1           WAKE
key 172   HOME   # X键目前替换HOME键
key 601   KEY_EM_O   # 新增O键

4 在QSSI12/frameworks/base/data/keyboards/Generic.kl中增加X/O按键如下所示


 git diff frameworks/base/data/keyboards/Generic.kl
diff --git a/QSSI12/frameworks/base/data/keyboards/Generic.kl b/QSSI12/frameworks/base/data/keyboards/Generic.kl
index bd0e56a..e4eb2ae 100644
--- a/QSSI12/frameworks/base/data/keyboards/Generic.kl
+++ b/QSSI12/frameworks/base/data/keyboards/Generic.kl
@@ -410,6 +410,9 @@ key 580   APP_SWITCH
 key 582   VOICE_ASSIST
 # Linux KEY_ASSISTANT
 key 583   ASSIST
+# ZM ADD KEY X O
+key 158   KEY_BACK(X键目前BACK键替换）
+key 601   KEY_EM_O

5 在 QSSI12/frameworks/native/include/android/keycodes.h路径中增加内容如下

--- a/QSSI12/frameworks/native/include/android/keycodes.h
+++ b/QSSI12/frameworks/native/include/android/keycodes.h
@@ -776,7 +776,11 @@ enum {
     AKEYCODE_THUMBS_DOWN = 287,
     /** Used to switch current account that is consuming content.
      * May be consumed by system to switch current viewer profile. */
-    AKEYCODE_PROFILE_SWITCH = 288
+    AKEYCODE_PROFILE_SWITCH = 288,
+         /** add custom key X */
+    AKEYCODE_KEY_EM_O = 289,
     // NOTE: If you add a new keycode here you must also add it to several other files.
     //       Refer to frameworks/base/core/java/android/view/KeyEvent.java for the full list.

6 在Android 12目录下 QSSI12/frameworks/native/libs/input/InputEventLabels.cpp 将上面的宏展开就是 {KEY_EM_O， AKEYCODE_KEY_EM_O }

其中KEY_EM_O对应上面定制的字符串

@@ -314,7 +314,10 @@ namespace android {
     DEFINE_KEYCODE(REFRESH), \
     DEFINE_KEYCODE(THUMBS_UP), \
     DEFINE_KEYCODE(THUMBS_DOWN), \
-    DEFINE_KEYCODE(PROFILE_SWITCH)
+    DEFINE_KEYCODE(PROFILE_SWITCH), \
+    DEFINE_KEYCODE(KEY_EM_O)

 // NOTE: If you add a new axis here you must also add it to several other files.
 //       Refer to frameworks/base/core/java/android/view/MotionEvent.java for the full list.

7 高通Android 10/11目录 LINUX/android/frameworks/native/include/input/InputEventLabels.h 添加DEFINE_KEYCODE 增加X/O按键映射

static const InputEventLabel KEYCODES[] = {

    // NOTE: If you add a new keycode here you must also add it to several other files.

    //       Refer to frameworks/base/core/java/android/view/KeyEvent.java for the full list.

    DEFINE_KEYCODE(UNKNOWN),

    DEFINE_KEYCODE(SOFT_LEFT),

    ......

    DEFINE_KEYCODE(PROFILE_SWITCH),

    DEFINE_KEYCODE(KEY_EM_O),

    { nullptr, 0 }

};

8 在 QSSI12/frameworks/base/core/java/android/view/KeyEvent.java 增加X/O按键经过如上的步骤就将”123”按键和Android系统中的KEYCODE_KEY_EM_X就对应起来，注意这里的”600键值并不是真正意义上的600键值，他只是linux驱动向上层抛出的键值。

--- a/QSSI12/frameworks/base/core/java/android/view/KeyEvent.java
+++ b/QSSI12/frameworks/base/core/java/android/view/KeyEvent.java
@@ -831,6 +831,9 @@ public class KeyEvent extends InputEvent implements Parcelable {
      */
     public static final int KEYCODE_PROFILE_SWITCH = 288;

+       /** add by zm 2023/04/11*/
+    public static final int KEYCODE_KEY_EM_O = 289;     /**
      * Integer value of the last KEYCODE. Increases as new keycodes are added to KeyEvent.
      * @hide
@@ -1977,6 +1980,9 @@ public class KeyEvent extends InputEvent implements Parcelable {
             case KeyEvent.KEYCODE_SYSTEM_NAVIGATION_DOWN:
             case KeyEvent.KEYCODE_SYSTEM_NAVIGATION_LEFT:
             case KeyEvent.KEYCODE_SYSTEM_NAVIGATION_RIGHT:
+            case KeyEvent.KEYCODE_KEY_EM_O:
+
                 return true;
         }

9 对应上层 KeyEvent.java 里面映射KEYCODE值

--- a/QSSI12/frameworks/base/core/res/res/values/attrs.xml
+++ b/QSSI12/frameworks/base/core/res/res/values/attrs.xml
@@ -1984,6 +1984,9 @@
         <enum name="KEYCODE_THUMBS_UP" value="286" />
         <enum name="KEYCODE_THUMBS_DOWN" value="287" />
         <enum name="KEYCODE_PROFILE_SWITCH" value="288" />
+        <enum name="KEYCODE_KEY_EM_O" value="289" />
     </attr>

10 最后在PhoneWindowManager增打开DEBUG_INPUT日志开关如下代码所示

--- a/QSSI12/frameworks/base/services/core/java/com/android/server/policy/PhoneWindowManager.java
+++ b/QSSI12/frameworks/base/services/core/java/com/android/server/policy/PhoneWindowManager.java
@@ -240,7 +240,7 @@ import java.util.HashSet;
 public class PhoneWindowManager implements WindowManagerPolicy {
     static final String TAG = "WindowManager";
     static final boolean localLOGV = false;
-    static final boolean DEBUG_INPUT = false;
+    static final boolean DEBUG_INPUT = true;
     static final boolean DEBUG_KEYGUARD = false;
     static final boolean DEBUG_SPLASH_SCREEN = false;
     static final boolean DEBUG_WAKEUP = false;
@@ -2604,6 +2604,8 @@ public class PhoneWindowManager implements WindowManagerPolicy {
         if (DEBUG_INPUT) {
             Log.d(TAG, "interceptKeyTi keyCode=" + keyCode + " down=" + down + " repeatCount="
                     + repeatCount + " keyguardOn=" + keyguardOn + " canceled=" + canceled);
+                        Log.d("yeruilai", "interceptKeyBeforeDispatching KeyEvent="+event.toString());
+
         }

         if (mKeyCombinationManager.isKeyConsumed(event)) {
@@ -3448,6 +3450,7 @@ public class PhoneWindowManager implements WindowManagerPolicy {
             Log.d(TAG, "interceptKeyTq keycode=" + keyCode
                     + " interactive=" + interactive + " keyguardActive=" + keyguardActive
                     + " policyFlags=" + Integer.toHexString(policyFlags));
+                                       Log.d("yeruilai", "interceptKeyBeforeQueueing KeyEvent="+event.toString());
         }

11、编译之前执行最后执行指令更新下api，再触发编译

make update-api

/frameworks/base/api/current.txt（qssi11路径）QSSI12 frameworks/base/core/api/current.txt

git diff frameworks/base/core/api/current.txt
diff --git a/QSSI12/frameworks/base/core/api/current.txt b/QSSI12/frameworks/base/core/api/current.txt
index 1dd401d..c8ad206 100644
--- a/QSSI12/frameworks/base/core/api/current.txt
+++ b/QSSI12/frameworks/base/core/api/current.txt
@@ -47609,6 +47609,8 @@ package android.view {
     field public static final int KEYCODE_K = 39; // 0x27
     field public static final int KEYCODE_KANA = 218; // 0xda
     field public static final int KEYCODE_KATAKANA_HIRAGANA = 215; // 0xd7
+    field public static final int KEYCODE_KEY_EM_O = 289; // 0x121
     field public static final int KEYCODE_L = 40; // 0x28
     field public static final int KEYCODE_LANGUAGE_SWITCH = 204; // 0xcc
     field public static final int KEYCODE_LAST_CHANNEL = 229; // 0xe5

注意事项:

防止冲突或者遗漏最好在QSSI12目录下搜索所有Generic.kl文件find -name ‘Generic.kl’

QSSI12/device/google/atv/Generic.kl
QSSI12/device/amlogic/yukawa/input/Generic.kl
QSSI12/frameworks/base/data/keyboards/Generic.kl
QSSI12/cts/tests/tests/view/res/raw/Generic.kl

最后编译产物out/target/product/qssi/system/usr/keylayout/Generic.kl

编译之前执行最后执行指令更新下api，再触发编译
make update-api
/frameworks/base/api/current.txt
(qssi11路径）QSSI12 frameworks/base/core/api/current.txt

3、调试可打开以下库文件的开关

3.1 \frameworks\native\libs\input

3.2 \frameworks\native\services\inputflinger

3.3 . adb shell dumpsys input 查看现有输入系统

4 adb shell getevent 可查看现有的输入事件

3.5 在/system/usr/keylayout中还有很多Vendor_xxxx_Product_xxxx.kl 之类的配置文件，但是我们没有配置对应的vend id等，所以一直使用默认的Generic.kl。

异常处理

1、 QSSI12/frameworks/native/libs/input/InputEventLabels.cpp 出现空格其他字

解决方案:去掉空格其他斜杠字符转义重新编译即可用编译器修改最好不要用内部编辑器出现编码不一致问题（VSCode/NodePad++)

2、出现KeyCode Unknown 检查QSSI12/device/qcom/qssi/gpio-keys.kl中增加键盘扫描码对应的键盘码是否添加，如果没有新增示例如下

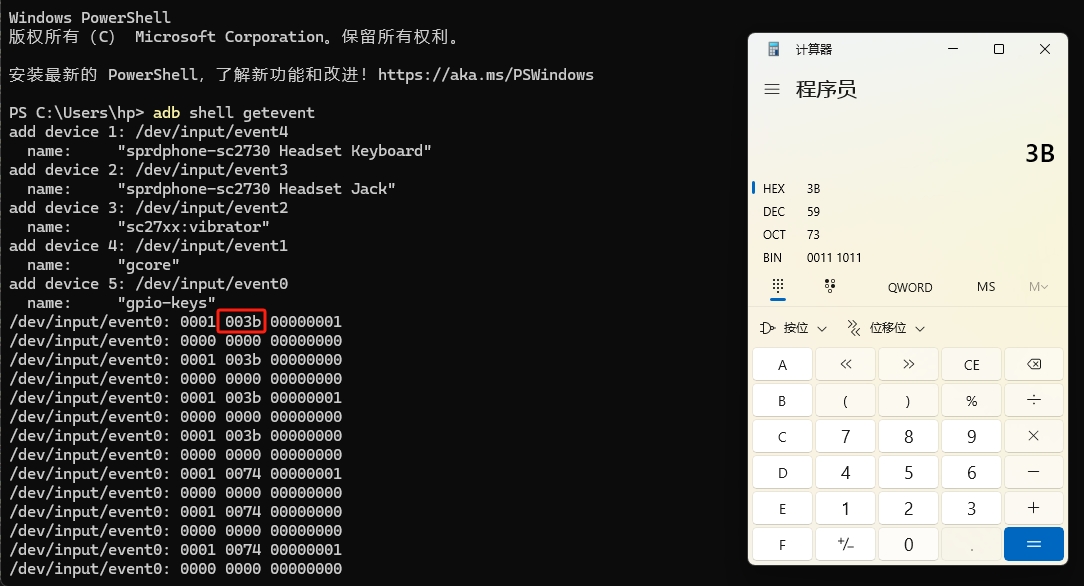

3、十六进制转换成十进制的方法如下:
